PCB Assembly & Electronics Manufacturing Services

End-to-end electronics manufacturing under one roof — from your Gerber files and BOM to tested, packed, and shipped boards.

🔄

Turnkey Assembly

We source, assemble & test

⚙️

SMT & THT

Surface mount & through-hole

📦

Box Build

Complete system integration

🔬

Testing & Inspection

SPI · AOI · X-Ray · ICT · FT

Turnkey PCB Assembly India

You send Gerber files and BOM. We handle everything from that point — component procurement, stencil setup, assembly, full inspection, testing, and delivery. One point of contact. One invoice. Zero hassle.

✔Free DFM (Design for Manufacturability) review before production starts

✔Component sourcing from Digi-Key, Mouser, Arrow, Avnet — authorised only

✔Incoming component inspection — authenticity, date codes, lot verification

✔SMT / THT / Mixed assembly with full process controls

✔100% SPI, AOI, X-Ray (BGA), ICT, and functional testing

✔Conformal coating and in-circuit programming if required

✔Packed and dispatched with full quality documentation

Request Turnkey Quote →

Turnkey PCB Assembly India Rionyx Industries

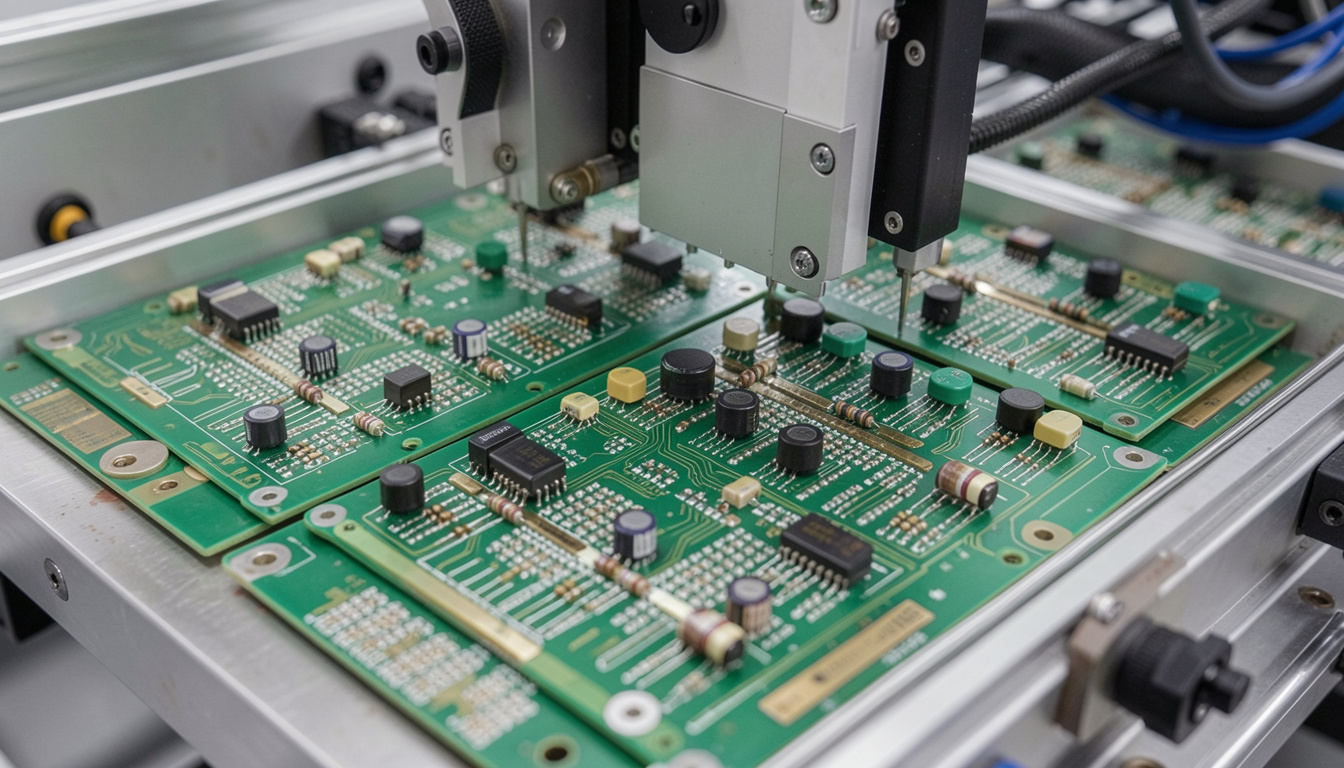

Surface Mount Technology

SMT PCB Assembly Services India

Our SMT line handles everything from simple 2-layer boards with basic passives to complex 24-layer HDI boards with 0201 components, ultra-fine-pitch BGAs, and high pin-count QFPs.

✔0201 (0.6×0.3mm) components as standard — 01005 on request

✔BGA all pitches including 0.4mm micro-BGA

✔QFN, LGA, CSP, DFN — all fine-pitch IC packages

✔Double-sided SMT assembly (top and bottom reflow)

✔Fine-pitch QFP down to 0.4mm pitch

✔Lead-free (SAC305) and leaded assembly — both available

✔Nitrogen reflow available for oxidation-sensitive assemblies

Get SMT Assembly Quote →

Through-Hole Technology

Through-Hole (THT) Assembly Services India

Through-hole components — connectors, power passives, electrolytic capacitors, transformers — require the mechanical strength and current capacity that surface mount cannot provide. We handle full THT assembly at high volume.

✔Manual through-hole insertion for all DIP, SIP, radial & axial components

✔Wave soldering for high-volume THT boards

✔Selective soldering for mixed SMT+THT — no masking needed

✔Hand soldering per IPC J-STD-001 for specialist connectors

✔Press-fit connector insertion

✔Odd-form and non-standard component placement

Get THT Assembly Quote →

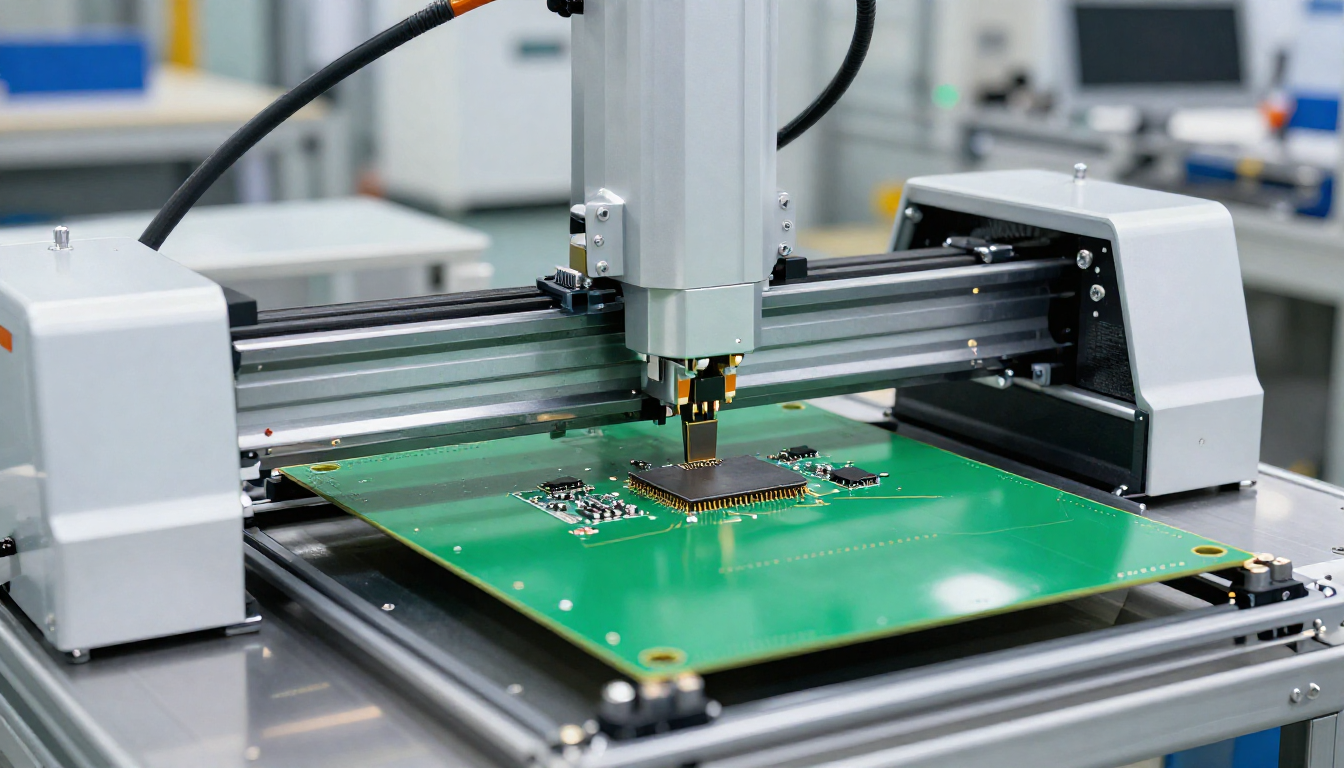

Through-Hole THT PCB Assembly India Gujarat

SMT + THT Together

Mixed Technology PCB Assembly

Most modern PCBs use both SMT and THT components. Our mixed technology line handles single-pass and multi-pass assemblies with reflow, wave, and selective soldering in the correct sequence for each design — no compromises.

✔SMT components placed and reflowed first

✔THT components inserted and wave/selectively soldered after

✔Double-sided mixed boards handled with appropriate thermal management

✔Full SPI, AOI, and ICT coverage across both technologies

✔Single quality inspection pass covers all assembly types

Get Mixed Assembly Quote →

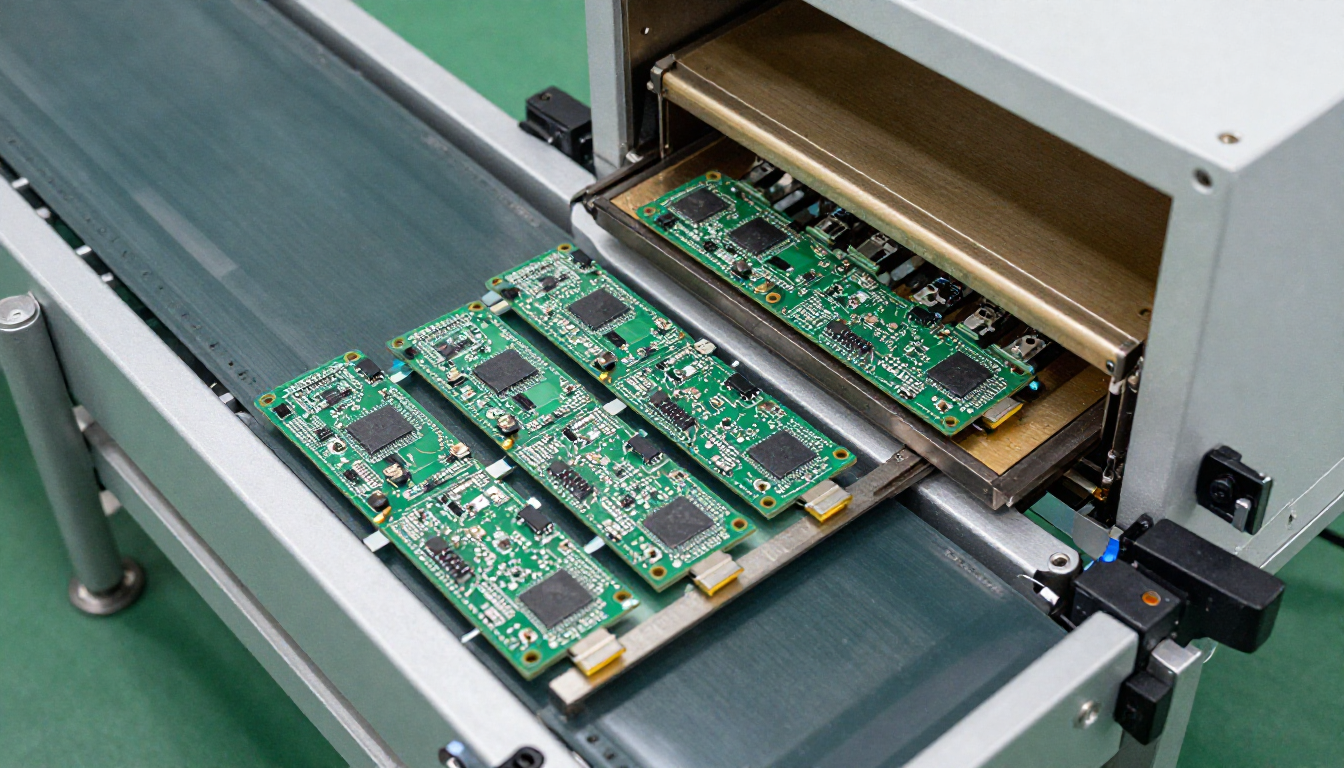

Mixed Technology PCB Assembly SMT THT India

Complete System Integration

Box Build & System Integration India

Box build is the assembly of complete electronic systems — not just PCBs. We take your sub-assemblies (PCBA, display, power supply, mechanical housing, cables, connectors) and integrate them into a complete, tested product.

✔PCB assembly (PCBA) for all sub-boards in the system

✔Cable harness assembly and attachment

✔Mechanical assembly — housing, brackets, panels, fasteners

✔Display and touchscreen integration

✔Final system-level testing and burn-in

✔Label, barcode, serial number application

✔Final packaging per your specification

Discuss Your Box Build →

Box Build System Integration Electronics Manufacturing India

You Supply the Parts

Consigned PCB Assembly India

You supply the components — pre-kitted or in reels and tubes. We provide all assembly, inspection, testing, and delivery. You keep control of your component supply chain while we deliver the manufacturing expertise and capacity.

✔Incoming component verification and kitting on receipt

✔Stencil and tooling setup by our engineering team

✔Full SMT / THT / Mixed assembly

✔Complete SPI, AOI, X-Ray, ICT, functional inspection

✔Dispatch with assembly quality report

✔Components must come with CoC and date code documentation

Get Consigned Assembly Quote →

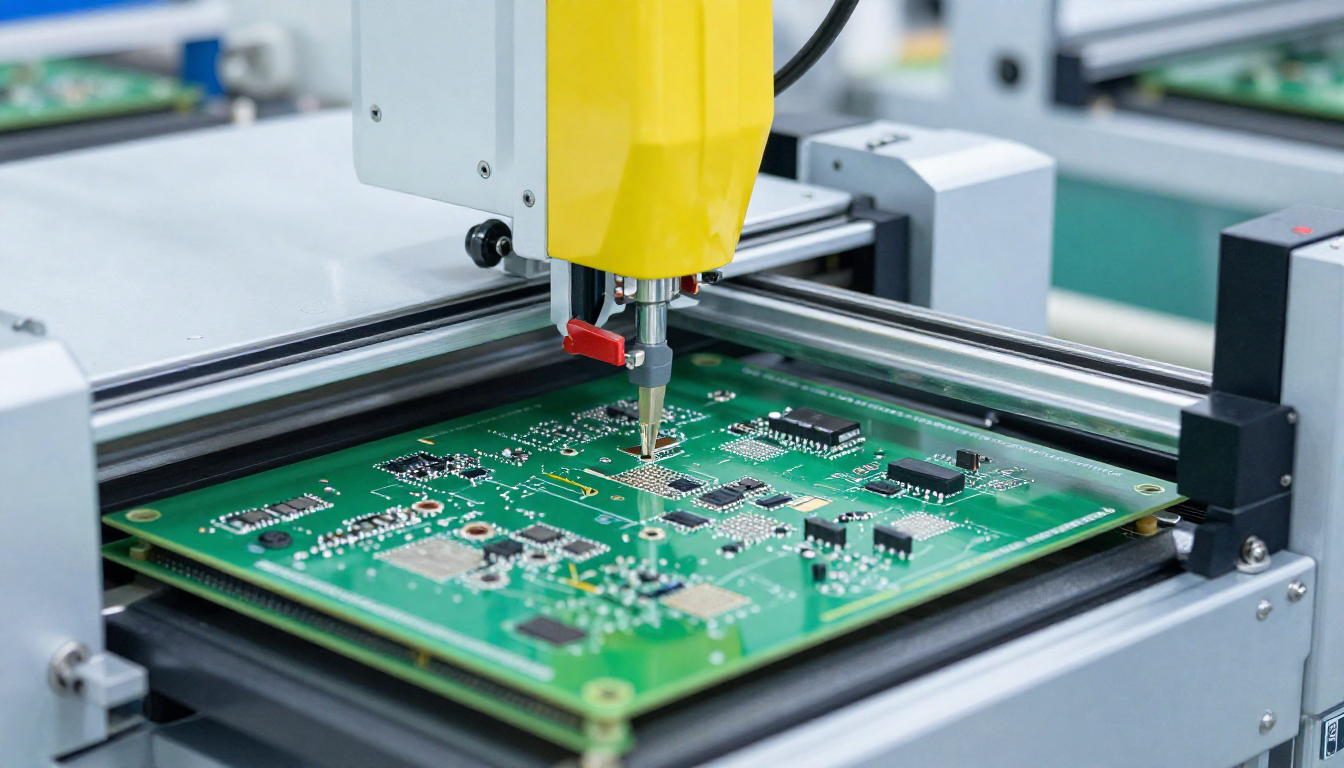

Consigned PCB Assembly India Rionyx Industries

Free with Every Quote

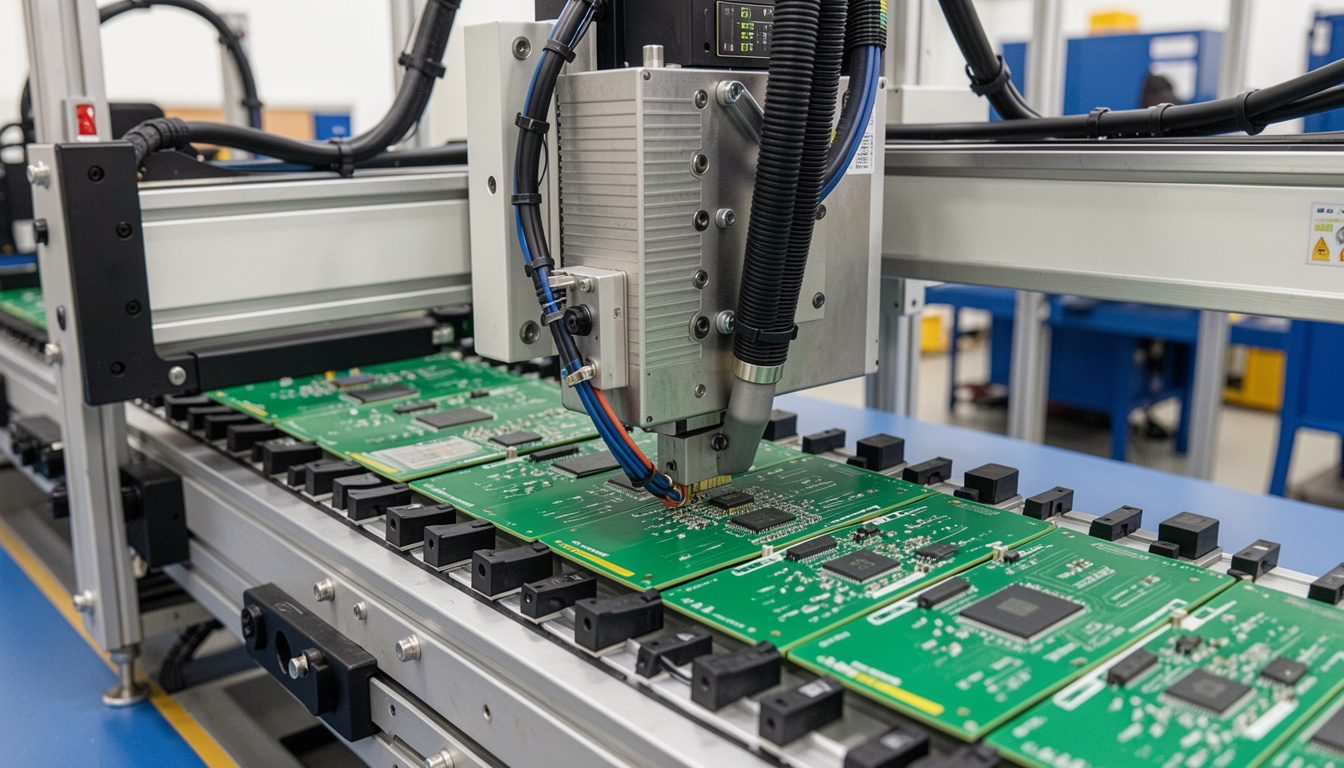

DFM Review — Design for Manufacturability

Before we quote or run a single board, our engineers review your Gerber files and BOM for design for manufacturability (DFM) issues. This is always free. Catching problems before production is the difference between a smooth run and an expensive rework.

✔Component placement — clearances, orientation, inspection access

✔Pad design — verified against IPC-7351 or your spec

✔Solder mask — solder bridge and tombstoning risk assessment

✔BOM check — obsolete parts, long-lead items, substitution risk

✔Test point access — for ICT and functional test

✔Panelisation recommendations for efficient production

✔Written DFM report provided with all findings and recommendations

Submit Files for DFM Review →

6-Stage Inspection

PCB Testing & Quality Inspection Services

Every board we ship has passed six inspection and test stages. Nothing gets through unchecked.

🖨️

SPI — Solder Paste Inspection

100% inspection of solder paste deposits after printing — before components are placed. Checks volume, area, height, and alignment. Defects caught here cost 10× less to fix than after reflow.

👁️

AOI — Automated Optical Inspection

100% AOI after placement (checks placement accuracy) and after reflow (checks solder quality). Catches missing components, wrong orientation, solder bridges, and open joints.

☢️

X-Ray Inspection

BGA, QFN, and LGA packages are X-rayed to verify hidden solder joint quality. Checks for voids, bridges, and incomplete ball collapse. Available 100% or on sampling basis.

🔌

ICT — In-Circuit Test

Verifies all components are present, correctly placed, correct value, and correctly soldered. Catches population errors, wrong component values, and solder opens.

⚡

Functional Test

Boards are powered up and tested for functional operation per your test specification. We can implement your functional test procedure or develop one from your product spec.

🔎

IPC-A-610 Visual Inspection

All boards visually inspected by IPC-A-610 certified operators to Class 2 or Class 3 acceptability criteria. Written inspection reports provided with shipment.

Environmental Protection

Conformal Coating

Conformal coating protects PCB assemblies from moisture, dust, chemicals, and temperature extremes. We offer acrylic (AR), silicone (SR), and urethane (UR) coatings applied by selective spray or full-board dip.

✔Acrylic (AR) — general purpose, easy rework

✔Silicone (SR) — high-temperature, wide temp range

✔Urethane (UR) — chemical and abrasion resistant

✔Selective spray or full-board application

Firmware Flashing

In-Circuit Programming

We program MCUs, FPGAs, Flash memory, and EEPROMs as part of the production process. Version-controlled programming with secure firmware storage for each product line.

✔JTAG, SWD, ISP, and UART programming protocols

✔Gang programming fixtures for high-volume

✔MCU, FPGA, Flash, EEPROM

✔Version-controlled firmware per production run

Ready to Start? Send Us Your Gerbers and BOM.

We respond with a detailed, itemised PCB assembly quote within 24 hours. No obligation. Just a competitive price and an honest lead time from India's trusted PCB assembly partner.

📋 Send Full RFQ ✉️ Email Directly

sales@rionyx.com · +91 93273 29069 · +91 79905 88795
Vatva GIDC, Ahmedabad, Gujarat, India · Mon–Sat: 09:00 AM – 06:00 PM IST
